Gerbeur accompagnant Dragon Machinery TE16 Electrique neuf

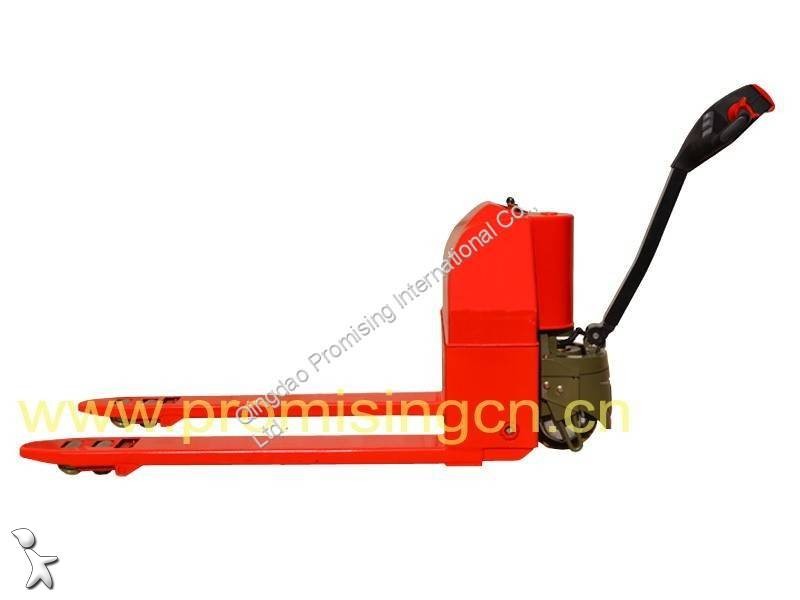

1.6T Electric Walkie Pallet Truck
1600kg Capacity Electric Pallet truck with DC driving system but without pedal
smart electric pallet truck, walk behind electric pallet handler, electric walkie pallet truck, electric pedestrian pallet truck, walkie electric pallet truck, pedestrian powered pallet truck, walkie powered pallet truck, walkie powered pallet truck, electric pallet handler, walkie pallet handler, pedestrian operated electric pallet truck, battery pallet truck, battery powered pallet handler, battery walkie pallet truck

Rated Load: 1.6T
Max. Lifting Height: 110mm
Overall Length: 1618mm
Overall Width: 684mm
Fork Size: 1150 x 150mm

Applications:
This 1.6T capacity electric walkie pallet truck or battery powered pallet handler is ideal for working in the confined areas of lorries for example as well as for efficient pallet transfers and marshalling duties. The smart electric walkie pallet truck with DC driving system offers quick response, accurate control and excellent performance and is specifically suited for loading and unloading trailers as well as transporting loads over short distances. This electric walk behind pallet handler can be used in a variety of applications across a number of market segments including food distribution, grocery stores, hardware and other retail operations as well as transportation/ warehousing/ logistics.

Features:
1. Safety control for cornering, the electric pallet truck will automatically slow down when cornering to avoid the ejection of operator and goods from the vehicle due to high speed;
2. Anti-roll back function to prevent the electric pallet truck from uncontrolled travel speed or rolling back on ramps when loading and unloading;
3. Small ground clearance to protect the operator;
4. High-strength frame design to suit the tough workplaces and ensures longer service life;
5. Vertical motor to ensure convenient inspection and maintenance of motor and brake providing much better maintainability than horizontal motor;
6. Ergonomic multi-functional operating handle to make the operation comfortable, simple and safe;
7. Advanced regenerative braking to guarantee low-energy consumption and increased efficiency;
8. Standard equipped with Curtis controller and DC drive motor.

Technical Specifications:
Model: TE16
Power Type: Electric
Operation Type: Walkie
Rated Load Capacity: 1600kg
Load Center: 600 mm
Wheel (Tyre) Type: Polyurethane Solid Tyre
Rear (Driving) Wheel: Ø210*70mm
Front (Load) Wheel: Ø78*70mm
Number of Wheels, Front/Rear (X=Driving): 4 / 1X
Max. Height of Handle from Ground: 1145mm
Max. Lifting Height of Fork: 110mm
Min. Ground Clearance of Fork: 85mm
Overall Length: 1618mm
Wheelbase: 1291mm
Fork Dimensions (L*W*T): 1150*150*45mm
Fork Spread (inside/outside): 380/680mm
Overall Width: 684mm
Front Wheel Tread: 530mm
Min. Turning Radius: 1419mm
Aisle Width with 800*1200 Pallet along Forks: 2084 mm
Aisle Width with 1000*1200 Pallet across Forks: 2173 mm
Max. Travel Speed (Full-load/No-load): 3.5/4.0 km/h
Service Weight (with Battery): 200 kg
Battery: 24V/80Ah
Charger: 24V/30A
Drive Motor: 0.75kW (DC)
Lift Motor: 0.8kW (DC)
Battery Weight: 51 kg
Type of Steering: Mechanical
Brake: Electromagnetic

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
