Gerbeur accompagnant Dragon Machinery TBD10-30 Electrique neuf

Electric Pallet Stacker

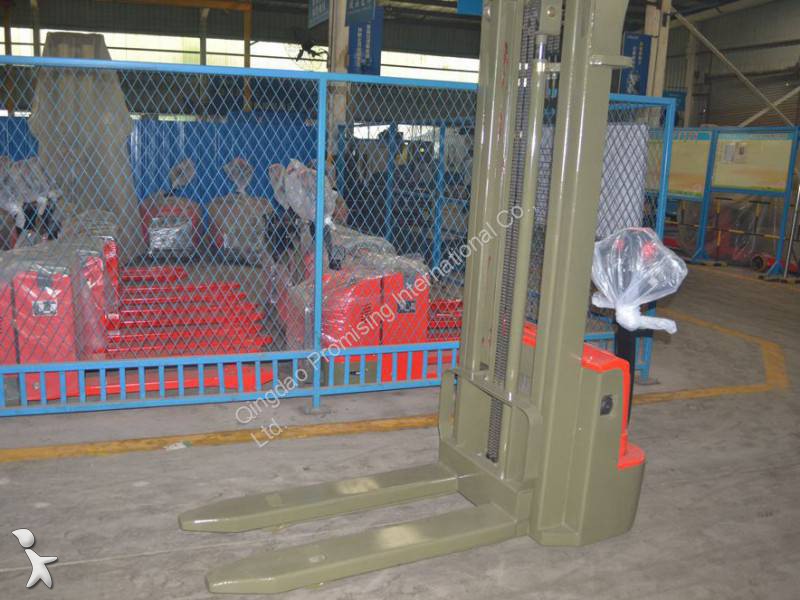

TBD Series Small Walkie Electric Pallet Stacker
Small electric pallet stacker, pedestrian operated small electric pallet stacker, small electric walkie pallet stacker, small electric pedestrian pallet stacker truck, small electric walkie stacker, small electric pedestrian stacker, small electric walkie stacker truck, pedestrian powered small pallet stacker, walkie powered small stacker truck, small battery pallet stacker, small battery stacker truck

Rated Load: 1.0T
Max. Lifting Height: 3.0m
Overall Length: 1750mm
Overall Width: 800mm
Fork Size: 1150 x 160mm

Applications:
Small Electric Pallet Stacker or Small Battery Stacker Truck is applicable to the stacking works in the narrow aisles and limited spaces and is the ideal tools for high-rack warehouses, supermarkets, workshops and containers for pallet stacking and block stacking or to handle material horizontally and load/unload goods on single deck pallet. This small electric stacker is specially designed for narrow aisle stacking works and pallet handling.

Features:
1. Small frame, small turning radius, small stack aisle width;
2. Excellent performance, Reasonable price, and easy operation;
3. Four wheel design with balance wheel to make it work more smoothly and steadily;
4. Side-mounted long operating handle to enable the driver to operate easily and have good view;
5. Maintenance-free battery to improve working efficiency.
TBD Series small electric pallet stacker is the most cost-effective stacker truck among similar products.

Technical Specifications:
Small Walkie Electric Pallet Stacker TBD10-30
Rate Load Capacity: 1000kg
Load Center: 500mm
Max. Lifting Height: 3000mm
Free Lift: 0mm
Wheel (Tyre) Type: Polyurethane Solid Tyre
Fork Size (L*W): 1150*160mm
Fork Spread: 560mm
Overall Length: 1750mm
Overall Width: 800mm
Wheelbase: 1215mm
Front/Rear Wheel Tread: 400/525mm
Height of Mast Lowered: 2090mm
Height of Mast Extended: 3570mm
Min. Turning Radius: 1400mm
Max. Travel Speed (Full-load/No-load): 3.5/4.0km/h
Max. Gradeability (Full-load/No-load): 3%/6%
Aisle Width with 1000*1200 Pallet across Forks: 2250mm
Service Weight (with Battery): 500kg
Rear (Driving) Wheel: Ø210*70mm
Front (Load) Wheel: Ø80*70mm
Battery: 2x12V/80Ah
Drive Motor: 0.65kW (DC)
Lift Motor: 2.0kW (DC)

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
